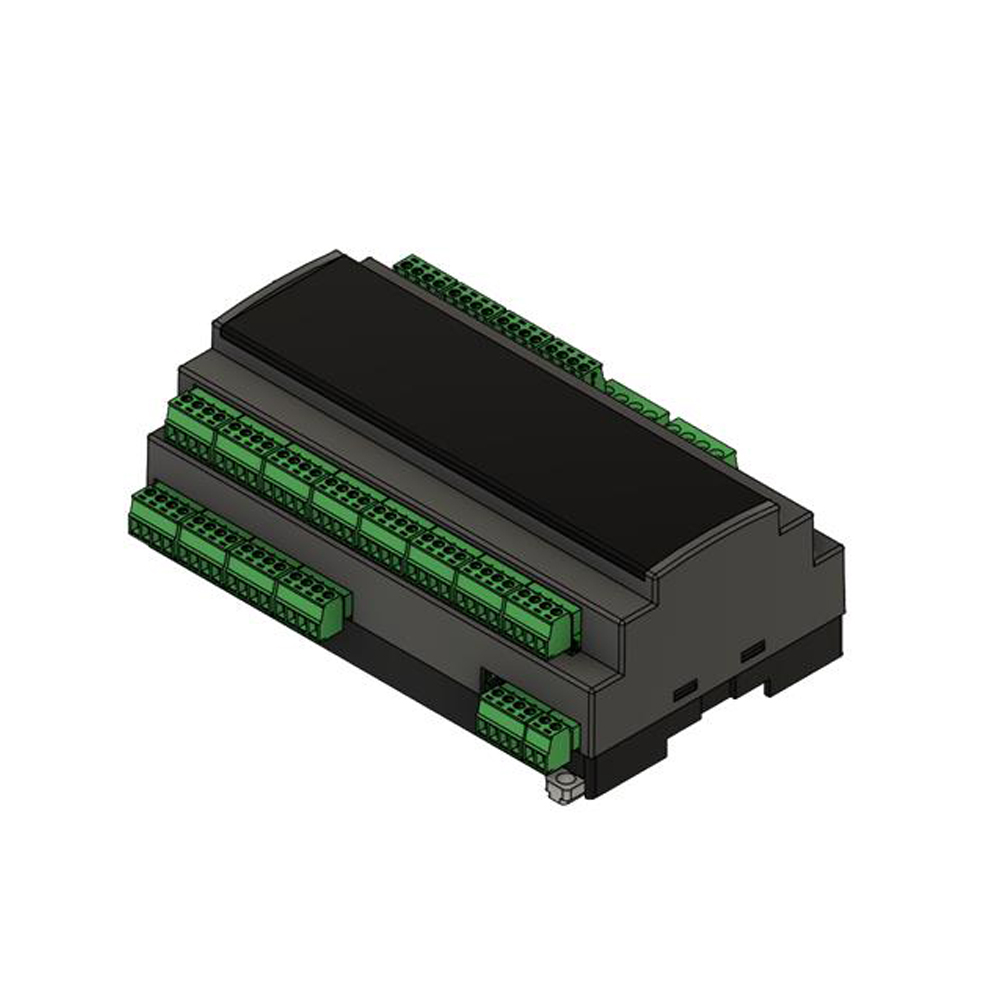

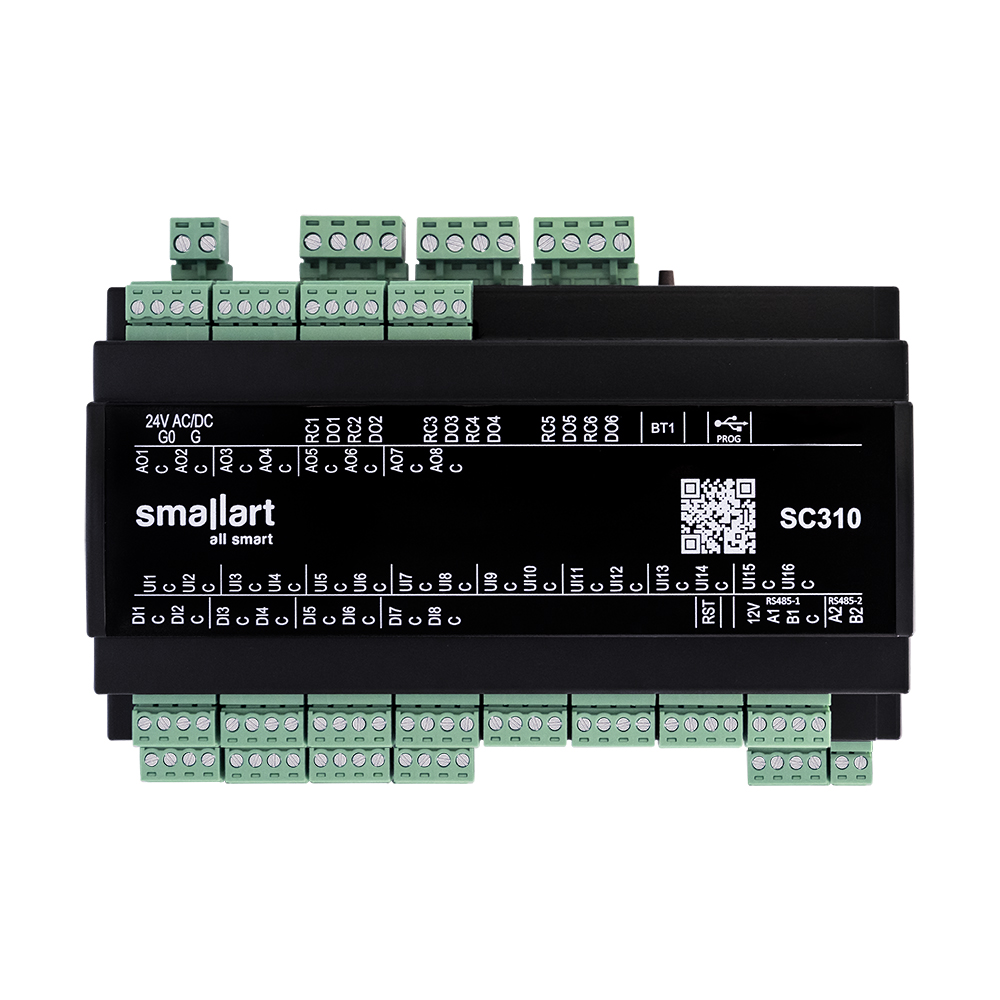

SC310
SC310 programmable controllers are used in building automation and HVAC applications. The module is designed and manufactured to work smoothly with all devices, thanks to its freely programmable structure.
Technical Features
- Programmable Controller (PLC)
- S-Designer supports 5 Different Programming Languages in line with IEC 61131-3 Standard
- Wi-Fi Access Point and Ethernet Port (RJ45)
- Configuration / Test / Software Update with Web Server Interface
- Live Debug and Programming over USB and Ethernet
- Modbus RTU, Modbus TCP/IP, BACnet MS/TP and MQTT(S) Communications
- 2 x RS 485 Serial Port
- 16x Universal Input that can be used as Dry Contacts, NTC10k Sensor, PT1000 Sensor, 0-10V Analog Input or 4-20ma Analog Input
- 8 x Digital Inputs that can be used as Dry Contact
- 6 x 10A Digital Outputs
- 8 x 0-10V Analog Outputs
- 24V AC/DC Power Supply
- Optional Room Panel Connection (RP210)
- Optional HMI Touch Panel Connection
- DIN Rail Mount
